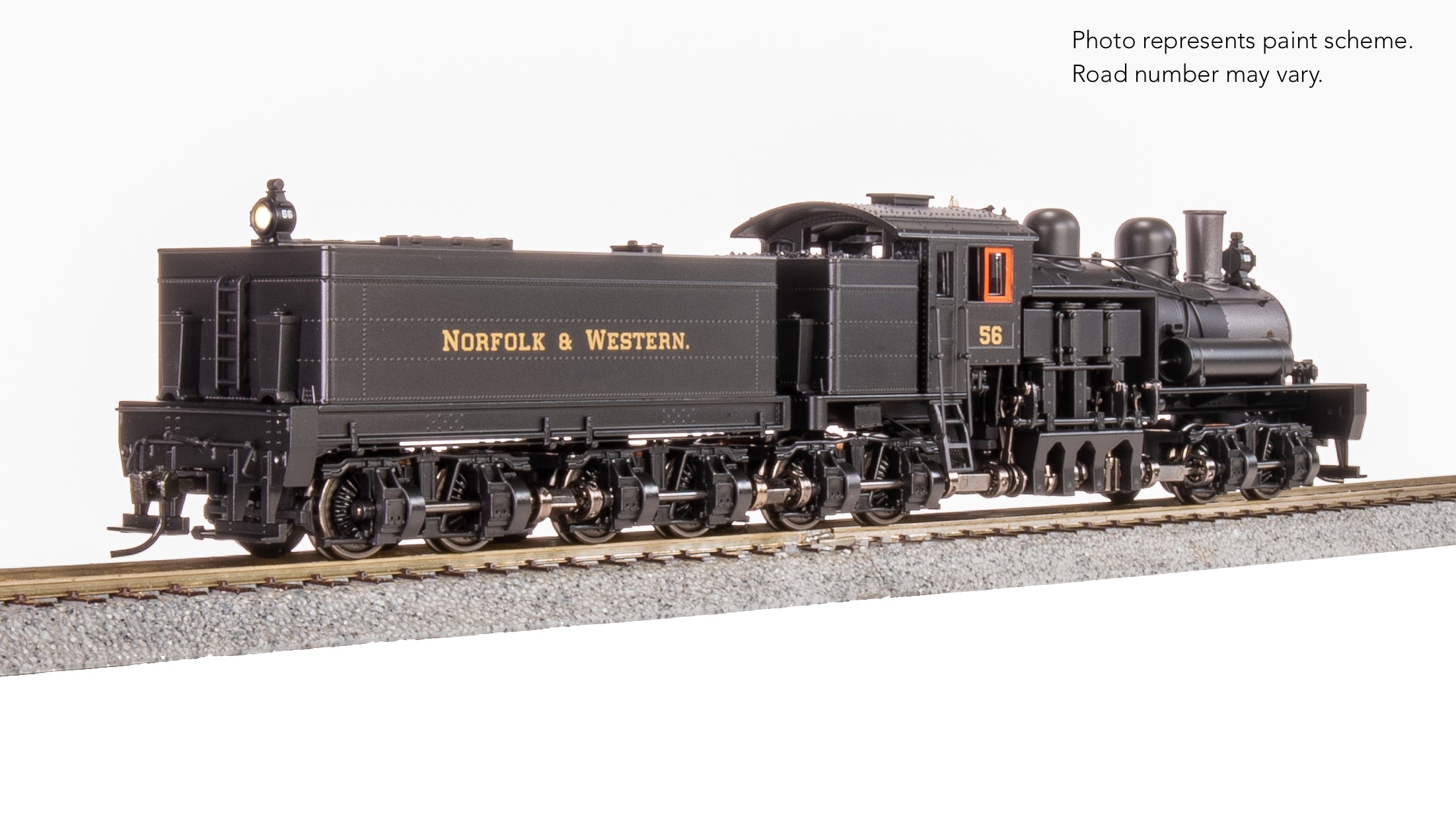

8256 Class D 4-truck Shay, N&W 56, No-Sound / DCC-Ready, HO

Sale price$499.99
Find a Dealer

Broadway Limited Imports encourages everyone to patronize their local hobby shops whenever possible. For those without a BLI reseller within reasonable proximity, we recommend the following online dealers who regularly and reliably ship BLI products worldwide.

(listed alphabetically)


Or, find a dealer near you.


Shay locomotives were geared Steam locomotives that were designed and built by the Lima Locomotive Works in Lima, Ohio. They were a popular type of geared locomotive used primarily for logging and industrial applications during the late 19th and early 20th centuries. The Class D Shay locomotives were an improved version of the earlier Class C Shay locomotives, featuring several design enhancements.

Class D Shays had three cylinders and four trucks, and weight of 100 and 150 short tons. They were no more powerful than Class C, but had greater fuel and water capacity, resulting in improved adhesion.

The distinguishing feature of the Shay locomotives was their unique geared drivetrain, which allowed them to deliver high tractive effort and excellent pulling power on rough and steep terrain. This geared drive mechanism used a series of gears and drive shafts to transfer power from the steam engine to the wheels. The gears increased the torque available to the wheels, making them well-suited for hauling heavy loads and navigating challenging terrain.  These locomotives were particularly popular in the logging industry, where their ability to negotiate tight curves and steep gradients made them ideal for hauling heavy timber out of rugged and remote areas.  The Shay locomotives also found use in various other industries, such as mining, construction, and sugar plantations, where their reliability and power were valued.

Today, a number of Class D Shay locomotives have been preserved and can be found in museums, tourist railways, and private collections around the world. They stand as a testament to the ingenuity and versatility of these remarkable steam locomotives that played a significant role in the industrial and transportation history of the United States.

In our first production run, we are offering several variations of the 150-ton Class D Shay locomotives.  We offer locomotives in multiple road names and paint schemes.  Our models have die cast locomotive and tender bodies for maximum weight and tractive effort.  In addition to the Paragon4 versions, each model is available in our Stealth Series.  These are No-Sound / DCC-Ready models that operate on DC out of the box, or a modeler can easily install their DCC decoder of choice.  Out of the box, front and rear lights are directional, and other lights are always illuminated with track power.  Additionally, some lightning may be missing depending on selected aftermarket decoder the modeler installs.  See below for additional model features including the full list of individually controllable lights.



Industry-leading Model Features:


  • Stealth Series - Model is DCC-Ready out of the box.   No sound.

  • Out of the box, front and rear lights are directional.  Other lights are illuminated with track power.

  • Model comes with 8-ohm speaker already installed for easily installation of DCC/Sound decoder.

  • Precision Drive Mechanism engineered for continuous heavy load towing and smooth slow speed operation

  • 5-Pole Can Motor with Skew Wound Armature

  • Heavy Die Cast Boiler, Tender Body, and Chassis for Increased Tractive Effort

  • Premium Caliber Painting with Authentic Paint Schemes

  • Prototypical Light Operation with Separately Controllable Headlight, Reverse Light, and Cab Light

  • Factory-installed Engineer and Fireman Figures

  • Many Separately Applied Details such as Handrails, Ladders, Conduit, Generators, Whistle, Horn, and Brass Bell

  • Equipped with Rubber Traction Tires for Increased Pulling Power

  • Recommended Minimum Radius:  18 inches
